Types of bridges

Bridge types are covered by animations of 24 types of bridge and photo galleries of the Newcastle bridges over the River Tyne and the Danube bridges between Budapest and Vienna.

The bridges include:

  • beam bridges
  • continuous span bridge
  • simple span bridge
  • cantilever span bridge
  • cantilever with suspended span bridge
  • Warren deck truss bridge
  • Warren (through)Truss
  • Pratt Truss (through truss)
  • Howe Truss (through truss)
  • Lattice Truss (through truss)
  • Plate girder bridge
  • Deck beam bridge
  • Orthotropic beam bridge
  • Rigid frame (inclined legs)
  • Rigid Frame (with V- legs)
  • Stone arch bridge
  • Open spandrel deck arch bridge
  • Spandrel braced arch bridge
  • Cantilever through truss bridge
  • Trussed deck arch bridge
  • Trussed through arch bridge
  • Ribbed arch bridge
  • Suspension bridge
  • Cable stayed bridge

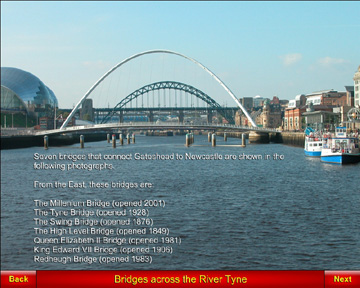

Bridges across the Tyne at Newcastle

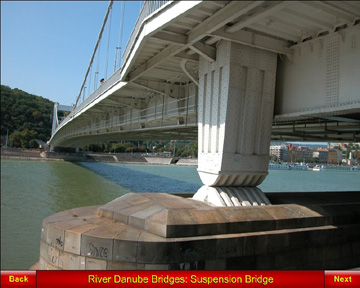

Bridges across the Danube between Vienna and Budapest

Order the Bridges Common Cartridge

To order the Bridges IMS Common Cartridge for a UK school, click here: UK schools order form.

To order the Bridges IMS Common Cartridge for a non-UK school and to pay by credit card or PayPal,
click here: credit card payments
